We recently acquired a basic, simple to use camera trap from Stealth Cam (the STC-P12). We desired to see if we could run the wildlife digital camera away from a tiny solar panel because works off of 8 (!) AA battery packs therefore we hate getting rid of AAs. We're able to use the 12V DC input on the base regarding the cam, but performedn’t desire to use our large laptop style methods to charge it. As an alternative we used one of our fundamental kits and boosted the 5V USB output up to 12V.

Components record:
-
- 6 Watt Solar Charger Kit (3.5 Watt Kit would work additionally)
- 2 x Extension cable
- 5 to 12V Increase – plenty of these on
- Waterproof instance – we like
- Epoxy or waterproof gland

Determining power needs:
Before creating the device, we desired to first ensure that the boost from 5V works. We linked the device through a and then our power to ensure the outcome. We sized:
- a little less than 1 Watt power usage for an additional while the system ended up being using a picture
- 0.72 Watts while digital camera was at standby for approximately one minute after photo
- significantly less than 0.005 Watts when digital camera went into sleep mode

This was really inside the parameters of your system, therefore we proceeded utilizing the build.

Assembly:

Power in: We slashed one of many expansion cable and drilled a hole in the case so the cable simply fit. We then spliced that cable to a MicroUSB cable to connect into the Voltaic V15. To try this part, point the panel in the sun therefore the fee signs regarding Voltaic battery pack should light up in series.

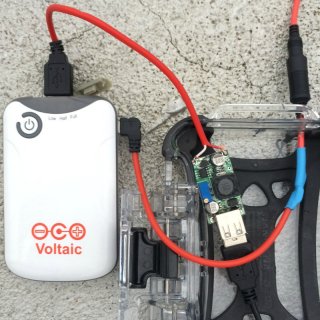

Power from battery pack to digital camera: First, we cut the production USB cable (included with the V15) to reveal the negative and positive wires and soldered them to the boost circuit. After that we cut a moment cable, drilled a hole through the case and linked the cable to a 5.5 x 2.1mm connect.

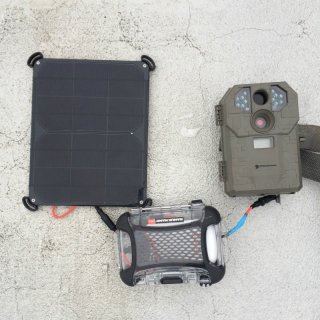

This is what the machine looked like whenever total. The battery meets snugly in the case.

Our battery was created to turn off after 20 moments if there's nothing drawing energy. You intend to bypass that environment inside kind of 24 x 7 setup. To change to Always On mode, hold the energy button down for 7-8 moments before lights flash 3 x. Today battery pack stays on regardless of what. To double check that you will be in Always On mode, dual click on the energy option. If the power stays on, you are in Always On mode. If you don't, support the energy key for another 7 moments.

Much more testing and industry usage:
Before taking it towards industry, we tested it in a Brooklyn backyard with a pumpkin as bait. We got mostly squirrels plus several sparrows.

Outcomes:
From an electrical viewpoint, it worked great. The Voltaic battery pack had been entirely full after a cloudy January on the go.

From a wildlife viewpoint, we just caught one deer plus photographs of ourselves as soon as we visited check on it. I’m not sure if this is because motion sensor was just so-so, the digital camera wasn’t in an excellent place or even the deer just weren’t that active. We’ll continue to test.
