Solar powered Well Pump system

Solar liquid Well Pump Submersible Kits
Inexpensive Easy to Install Techniques

Since 1988 Advanced Power solar liquid pumps have been satisfying the requirements of outlying and remote down grid areas for domiciles, cabins, agriculture and wildlife watering. These tough and trustworthy made in the united states pumps and solar power kits are perfect for wells with fixed liquid quantities of 200 legs or less and will provide countless gallons of water each day.

Our pumps are available as pumps only without a system, or we can provide a one, several solar power kit that includes top of pole panel mount and whatever you ought to get create except a metallic pole the panel mount, the opening when it comes to pole, some tangible and locally bought pipeline and fittings.

Innovative Power pumping methods run cell direct during daylight hours using the advantageous asset of our built in electronic settings that offer the same right through the day pumping advantageous asset of stand-alone linear current boosters. We are able to additionally design a battery operated system that will allow that push liquid any time of the day or evening. Learn more about solar power water really pump power options. Ready for a pump quote? Kindly e mail us for help or phone 931-962-8665.

The Solar Pumps

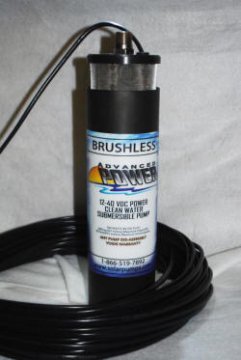

Advanced Power SR2 and SR4 Submersible Piston Solar Liquid Really Pumps

"Hello Ron,
Have actually simply completed setting up the pump and cell and am actually happy with the outcomes. The SR2 Pump works really well from 8.00 in early morning
until 9.00 p.m. and empties the tank faster as compared to offer fills it which can be great. Have fitted float valves to both reduced container and top container that work
really to manage the pump. Im only so pleased with the free power and effectiveness of the pump. Thank you for all your assistance. Paul G in Spain"

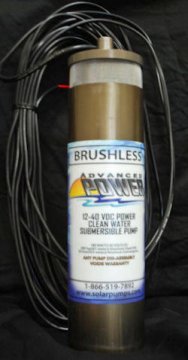

Advanced Energy RP2 and RP4 Submersible Piston Solar Water Really Pumps

• 2 Piston and 4 Piston brushless motor submersible solar pumps including factory prewired 100 legs of cable, even more cable available as a factory added option.
• 2 Piston pumps fit in a 4 inches or bigger casing.
  Total powerful head 200 feet 86 psi.
• 4 Piston pumps fit in a 5 inch or larger casing.
  Complete dynamic head 150 feet 65 psi.
• 2 Piston pumps maximum flow price 3 gallons each and every minute, about 1.5 at max mind.
• 4 Piston pumps optimum flow price 3.5 gallons each minute, about 2.1 at max head.

Standard Pump Features

• Over current defense.
• Thermal overload security to aid from overheating damage.
• Abrasion & deterioration resistant.
• Pressure relief device put in to help in an over force scenario eg a clogged weep gap or kinked or plugged water-line.
• Aluminum Housing and Head.
• Reverse polarity security.
• Short-term run dried out tolerant.
• Aluminum housing for rapid temperature dissipation.
• Brushless engine 12-40 volts DC operating range.
• Engineered CNC precision machined components.
• Made in the united states.
• Pumps are factory rebuild-able.
• 2 or 5 year guarantee based pump design.
• No extra controller required - push electronic devices consist of a linear current booster function.
• Not for sodium or brackish water or hot water over 110 levels F.
• Prepared for a pump estimate? Kindly contact us for help or phone 931-962-8665.

Solar Water Really Pump Kits

Solitary K85 and Double K170 Panel Kits Including Top of Pole Solar Panel Mount

K85 Solitary Panel Kits

With respect to the pump design plus the hours of complete sun for sale in your geographical location, an individual 85 watt cell kit can provide from 500 to 900 gallons per day throughout the sunniest period of the 12 months. Water amount will be different based on the depth of water within well, the pump design and everyday hours of complete solar insolation. The panel mount needs a 2-3/8 inches outside diameter pole (2 inch Plan 40 metallic).

K170 Two Panel Kits

According to the pump model in addition to hours of complete sunshine available in your geographic place, a-two 85 watt cell kit can deliver from 1, 300 to a lot more than 1, 700 gallons daily throughout the sunniest time of the 12 months. Liquid amount will vary on the basis of the level of liquid inside well, the pump model and daily hours of complete solar insolation. The panel mount needs a 2-3/8 inch outside diameter pole (2 inch Schedule 40 metal).

Prepared for a pump estimate? Kindly contact us for assistance or phone 931-962-8665.

Water Level Sensor Control Choice

Our ALC 1275 automatic water-level sensor converts your pump off whenever your water tank or trough is full and converts your pump back on whenever water is needed once more.

The controller includes an 8 second time delay before turning the pump off to avoid untrue indicators from trend action inside tank that could otherwise short-cycle your pump beginning and preventing.

The ALC 1275 is made for DC powered pumps with voltages between 12 and 75 DC.
